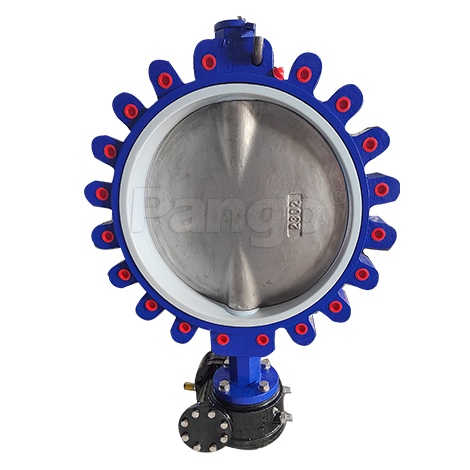

Lug Butterfly Valve with Worm Gear

Size Range:DN400-DN1200

Pressure: PN10/16

Body Material:DI/WCB/CF3/ CF3M/CF8

Seat Material:NBR/EPDM/PTFE

Disc Material:DI/CF3/ CF3M/CF8

Stem Material:SS420/ 2Cr13/SS304/SS316

Features: The valve has solid body,high precision and qualtiy.It can be used in municipal construction, hydraulic engineering, electricity, water supply and drainage, water treatment.

Get a Quote
Product Technical Catalogue
Product advantages

1. Pango Valve patented product, patent number: 201510315321.5 and 201520267217.9. Side flange meets ISO, DIN, GOST, ANSI,BS, JIS and other  standards, convenient to connect.


2. Material of valve body and disc are all adopted QT450-10, with level-3 spheroidization rate, over 10% elongation,   450Mpa tensile strength, mechanical performance is fully up to standard. It is not easy to be cracked.


3. Solid valve body, same diameter but with heavier weight compared with other manufacturers.


4. Standard EPDM rubber seat enable the valves have super stable and reliable resilience. No leakage after opening and closing more than 10,000 times.


5. The external surface of the valve adopts electrostatic powder thermal spray coating process, the thickness of the spray is up to 250μm, the valve body is heated at 200°C for 3 hours, and the powder is cured at 180°C for 2 hours. After natural cooling, the surface adhesion is doubled compared with ordinary powder, which is more environmentally friendly and weather resistant. Ensure that colour of valve body does not fade for 36 months.


6. Introducing the PE heat shrinkable packaging process for electronic products, each of the products is individually packaged with a heat shrinkable film, and a desiccant is placed to isolate the air dust. Conducive to storage, to avoid product corrosion caused by moisture.


7. Each product has its own independent QR code identification from the accessories to the finished product. The unique ID identification number ensures that the product can be traced back.


8. The standard intelligent measuring equipment integrates standard data measurement and pressure detection. Each inspection report is automatically generated. Each data and report is kept for 5 years. Ensure that the factory pass rate is 100%.


9. Pango brand product quality is covered by China Pacific Insurance with two million dollars. Two years warranty, pay two back if one bad within two years. Any quality problems of the product itself, we will pay without conditions.


Parameters



Parameter Information:

1. Executive standard:

NameDesign and manufactureFace to face LengthPressure TestTop FlangeEnd Flange
Reference standardGB/T 12238-2008GB/T 12221-2008GB/T 13927-2008ISO 5211GB/T 17241.6-2008/ EN1092-1/
ASME B16.5/ JIS 10K


2. Material of Main Parts:

Name1-Body2-Seat3-Disc4-Stem5-worm gear
Material and descriptionDIPTFEDISS420Module

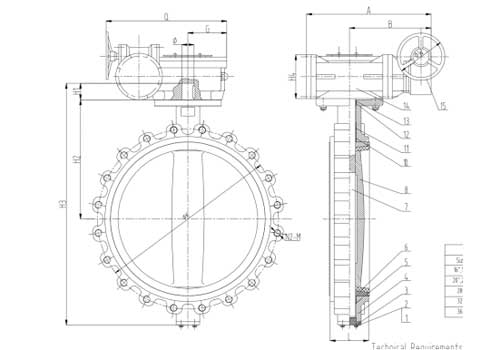

3. Dimensions:

DNNPSInchH1H2H3LPN10PN16150LB10K
ΦKn-ΦdΦKn-ΦdΦKn-ΦdΦKn-Φd
DN40016"5235576110251516-Φ2652516-Φ30539.716-Φ2951016-Φ27
DN45018"5238080011456520-Φ2658520-Φ30577.816-Φ3256520-Φ27
DN50020"6441590012762020-Φ2665020-Φ3063520-Φ3262020-Φ27
DN60024"70475109015472520-Φ3077020-Φ36749.320-Φ3573024-Φ33
DN70028"85580124116584024-Φ3084024-Φ36863.628-Φ3584024-Φ33
DN80032"85630134519095024-Φ3395024-Φ39977.928-Φ4195028-Φ33
DN90036"1306801502203105028-Φ33105028-Φ391085.832-Φ41105028-Φ33
DN100040"1308001651216116028-Φ33117028-Φ39



DN120048"1509411955276138032-Φ36139032-Φ45
